28 April 2008

Creamatorium and Columbarium

AutoCAD & Photoshop Rendering

Spring 2008

Mt. Olivet Chapels, collumbarium and creamatorium is nestled between two rows of existing trees, close to the existing roadway.

Three different chapels are lined up providing easy flow, while the crematorium is hidden behind one wall of collumbarium. Walls not used for collumbarium purposes are horizontal cladding allowing light into the chapels. Each chapel has a different natural lighting technique to give each chapel an unique feel.

Instructor: Rob Church

AutoCAD Wall Section
AutoCAD & InDesign Floor Plan

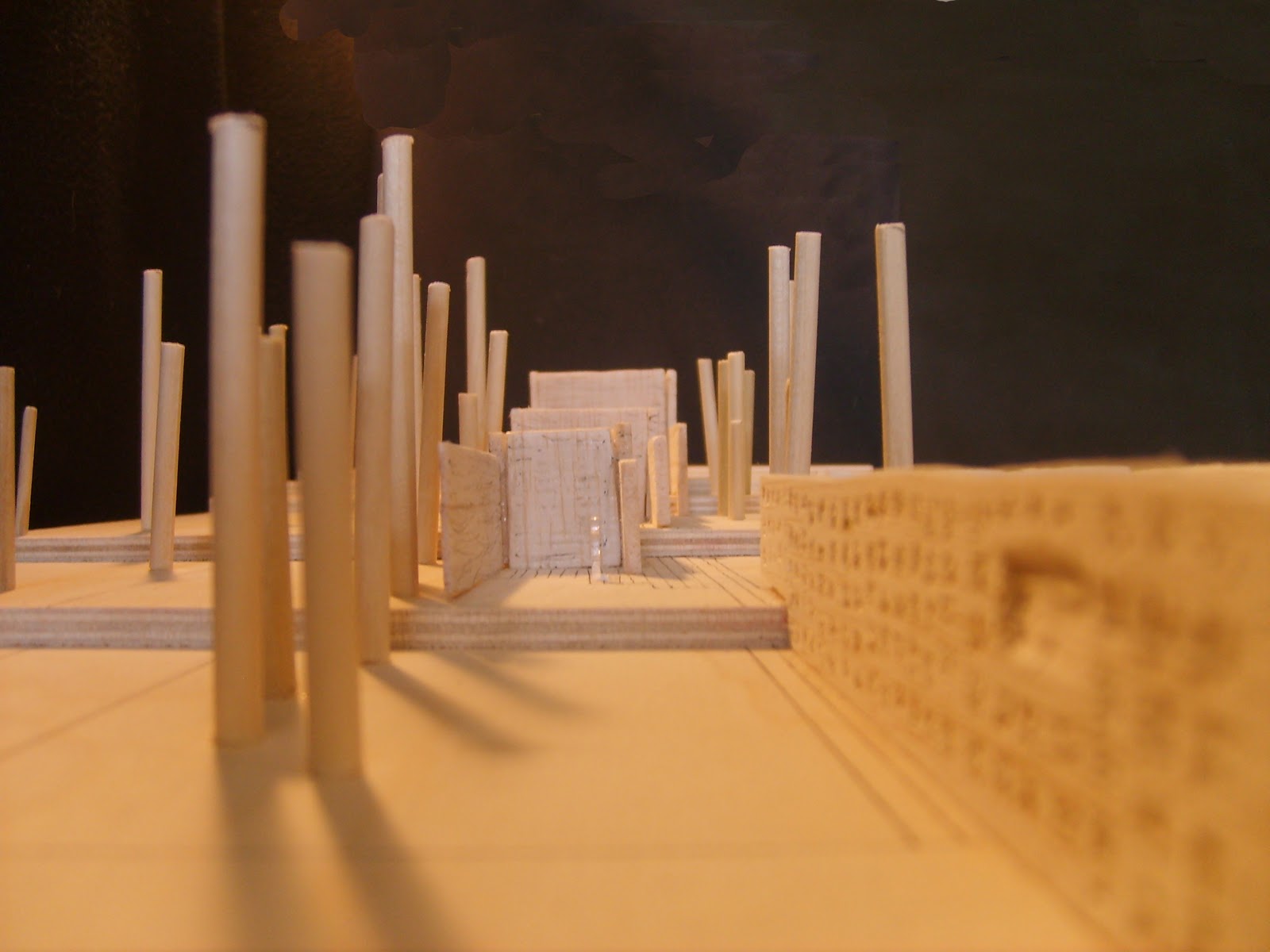

Model Photo

AutoCAD Building Section
